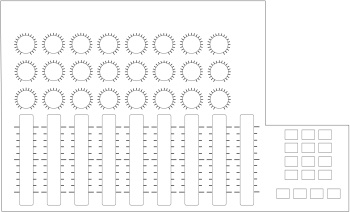

Blank UC33 MIDI Controller Overlay

This is a printable template for overlays to the evolution UC-33(e) MIDI contoller.

Download here: (284 KB)

Notes (also in the readme file in the download archive):

  • In Acrobat Reader, set "Page Scaling" to NONE before printing.
  • Compare the size of your printed template to an existing UC33 template to make sure it has been printed in the right scale.
  • If possible, laminate the template before cutting out the holes.
  • The PDF version has been divided into two sections to fit in a normal A4 printer. There is a slight overlap between the sections. I recommend not cutting the touching edges to final size before cutting out all holes and lining them up on the controller to see how much needs to be cut.

I have also included a complete template image in PNG format (150DPI resolution) which can be printed from your favourite graphics program, and the Paint Shop Pro source file which can be used as a basis for custom templates.

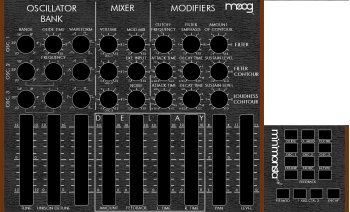

Minimonsta (Minimoog) UC33 MIDI Controller Overlay

This one was specifically made for the Minimonsta synth, but should work well with any Minimoog clone.

Download here: (1,309 KB)

The same comments as for the blank template above apply here.
